PD2560 - RF Power Splitter, Combiner, Divider

RoHS, 6 Way, BNC Female, 698 - 2700 MHz, 50 Ohm

Qty 1-9: $181.49

Qty 10-24: $161.40

Qty 25+:

click to view pricing

Product Overview

Wideband Frequency (698 - 2700 MHz)
Low Insertion Loss (0.5 dB avg)
High Port-to-Port Isolation (30 dB avg)
Excellent VSWR (1.15 : 1 avg)
RoHS Compliant Splitter Construction
Tri Alloy BNC Female (Jack) Low PIM

Frequency Range	Insertion Loss above 7.78 dB	Amplitude Balance	Phase Balance	Isolation	Input VSWR	Output VSWR
698-2700 MHz	1.0 dB max	0.3 dB max	5° max	18 dB min	1.35 : 1 max	1.20 : 1 max

Mechanical Specifications
Circuit Design	Wilkinson Microstrip passes DC Current thru all ports
Connectors	BNC Female, 50 Ohm Coaxial
Connector Body	Brass, Tri-Alloy Plate
Connector Pin	Beryllium Copper, Gold Plate
Connector Insulator	PTFE, Virgin Electrical Grade
Housing	Aluminum, Clear Chem Film
Operating Temp	-65°C to +85°C
Weight	664 Grams

6 Way Power Divider RF Input Ratings
Into Matched Load VSWR's	In-Phase	180° Out-of-Phase
1.2 : 1	40 Watts	40 Watts
2.0 : 1	40 Watts	20 Watts
∞	20 Watts	2 Watts
6 Way Power Combiner RF Input Ratings
Input Signals	In-Phase	180° Out-of-Phase
Coherent	6 X 6.67 Watts	6 X 0.33 Watts
Non-Coherent	6 X 0.66 Watts

PD2560 Features & Benefits

Overview

PD2560 is a RoHS compliant, 6 way, wideband, 50 ohm, RF power divider, power combiner furnished with BNC female coaxial connectors. All wireless band frequencies in the range from 698 to 2700 MHz are covered with optimal RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 6 way power divider input rating tables for additional details.

Electrical

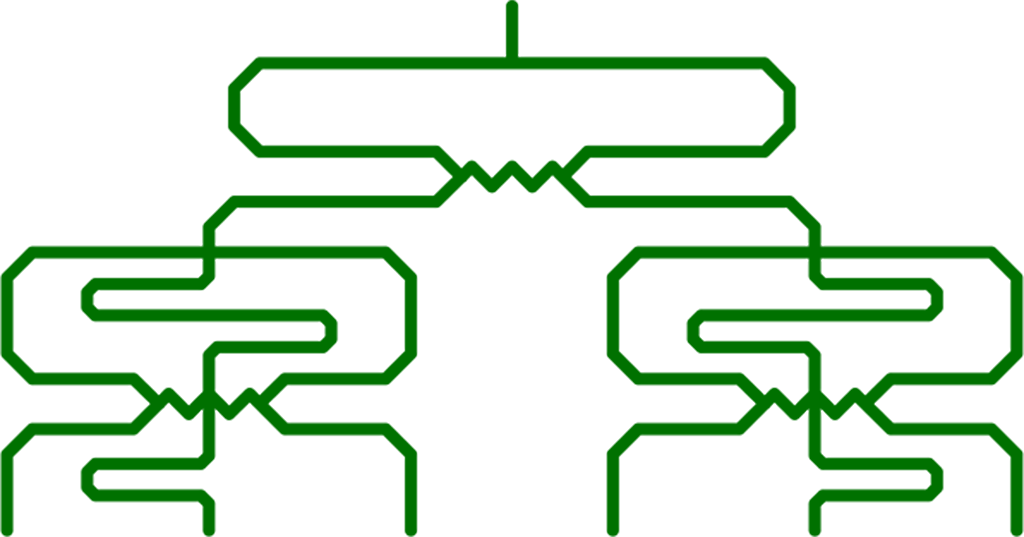

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. The Wilkinson microstrip circuit passes DC current to all ports making it ideal for use in active systems. Power splitter dividers passing DC to select ports and blocking DC to others are also available. See options (right). Electrical performance is highlighted by 1.1 dB max insertion loss (above the -7.78 dB power split), 18 dB min isolation, 1.40:1 max input VSWR and 1.20:1 max output VSWR. Equal power split and balance is displayed by 0.3 dB max amplitude balance and 5 degrees max phase balance. Narrow band RF performance over your frequency range may be even better. See 6 way power divider test sweeps for specific details.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm BNC type female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by four 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

Housing dimensions are 5.98" wide by 2.98" deep by 0.88" high (151.9 x 75.7 x 22.2 mm). The BNC female (jack) connectors extend 0.61" (15.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 573 grams. See 6 way power divider outline drawing for more information.

Applications

The PD2560 6-way, BNC Female (jack), power divider (splitter) combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.
