PD7020 - DC Blocking Power Splitter Combiner

DC Block, 2 Way, N Type, T-Style, 698 - 2700 MHz

Qty 1-9: $65.97

Qty 10-24: $58.67

Qty 25+:

click to view pricing

Product Overview

Broadband Frequency (0.698 - 2.700 GHz)
Low Insertion Loss (0.2 dB avg)
High Port-to-Port Isolation (30 dB avg)
Excellent VSWR (1.10 : 1 avg)
50 VDC maximum on DC block port
Tri Alloy Type N Female (Jack) Low PIM

Frequency Range	Insertion Loss above 3.01 dB	Amplitude Balance	Phase Balance	Isolation	Input VSWR	Output VSWR
698-2700 MHz	0.4 dB max	0.2 dB max	2° max	22 dB min	1.25 : 1 max	1.15 : 1 max

Mechanical Specifications
Circuit Design	Wilkinson Microstrip passes DC Current thru all ports
Connectors	N Female, 50 Ohm Coaxial
Connector Body	Brass, Tri-Alloy Plate
Connector Pin	Phosphor Bronze, Gold Plate
Connector Insulator	PTFE, Virgin Electrical Grade
Housing	Aluminum, Clear Chem Film
Operating Temp	-65°C to +85°C
Weight	173 Grams

2 Way Power Divider RF Input Ratings
Into Matched Load VSWR's	In-Phase	180° Out-of-Phase
1.2 : 1	40 Watts	40 Watts
2.0 : 1	40 Watts	10 Watts
∞	20 Watts	1 Watt
2 Way Power Combiner RF Input Ratings
Input Signals	In-Phase	180° Out-of-Phase
Coherent	2 X 20 Watts	2 X 0.5 Watts
Non-Coherent	2 X 1 Watt

PD7020 Features & Benefits

Overview

PD7020 is a RoHS compliant, 2 way, wideband, 50 ohm, RF power divider, power combiner furnished with N-type female coaxial connectors in a T-Style housing. The passive Wilkinson design passes RF, 10 MHz and DC current through one port, typically for powering an active antenna, with the other port blocking DC. Max voltage rating at the DC blocked port is 50 VDC. All wireless band frequencies in the 698 to 2700 MHz range are covered with optimal performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 2 way power divider input rating tables for more detail.

Electrical

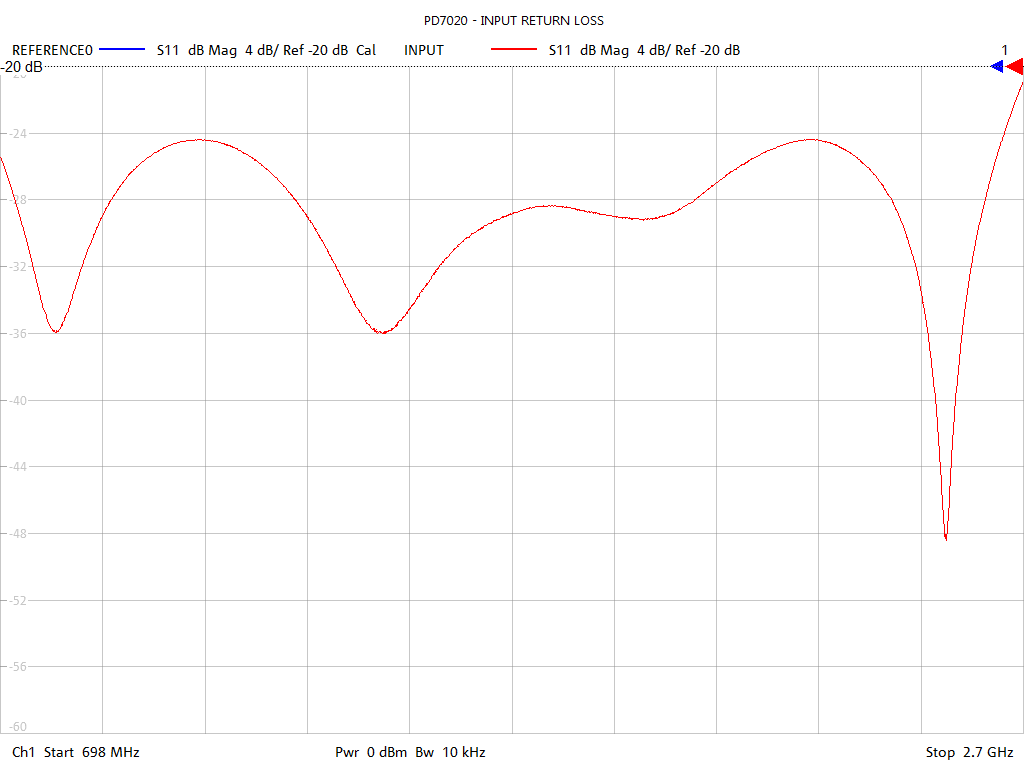

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.4 dB max insertion loss (above the -3.01dB power split), 22 dB min isolation, 1.25:1 max input VSWR and 1.15:1 max output VSWR. Equal power split and balance is displayed by 0.2 dB max amplitude balance and 3 degrees max phase balance. Narrow band RF performance over your frequency range may be even better. See 2 way power divider test sweeps for specific details.

Mechanical

The PD7020's T-Style housing allows convenient RF cabling access to all connector ports. Featuring precision CNC turned, brass, 50 ohm type-N female (jack) coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chem film finish. Secure mounting is provided by two 0.125" dia (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

Housing dimensions are 1.98" wide by 1.98" deep by 0.88" high (50.3 x 50.3 x 22.2 mm). The N type female (jack) connectors extend 0.65" (16.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 173 grams. See 2 way power divider outline drawing for more information.

Applications

The PD7020 2-way, N female (jack), power divider (splitter) combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.
