PD5160 - DC Blocking Power Splitter Combiner
6 Way, SMA, 698 - 2700 MHz, 50 Ohm Coaxial
USD icon click to view pricing Pop-up icon
Product Overview
- Broadband Frequency (0.698 - 2.700 GHz)
- Low Insertion Loss (0.3 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- 50 VDC maximum on DC block ports
- RoHS Compliant Splitter Construction
| Frequency Range |
Insertion Loss above 7.78 dB |
Amplitude Balance |
Phase Balance |
Isolation | Input VSWR |
Output VSWR |
|---|---|---|---|---|---|---|
| 698-2700 MHz | 1.1 dB max | 0.3 dB max | 5° max | 18 dB min | 1.40 : 1 max | 1.25 : 1 max |
| Mechanical Specifications | |
|---|---|
| Circuit Design | Passive Wilkinson; DC pass 1 port, DC block 5 ports |
| Connectors | SMA Female, 50 Ohm Coaxial |
| Connector Body | Brass, Tri-Alloy Plate |
| Connector Pin | Beryllium Copper, Gold Plate |
| Connector Insulator | PTFE, Virgin Electrical Grade |
| Housing | Aluminum, Clear Chem Film |
| Operating Temp | -65°C to +85°C |
| Weight | 568 Grams |
| 6 Way Power Divider RF Input Ratings | ||
|---|---|---|
| Into Matched Load VSWR's |
In-Phase | 180° Out-of-Phase |
| 1.2 : 1 | 40 Watts | 40 Watts |
| 2.0 : 1 | 40 Watts | 20 Watts |
| ∞ | 20 Watts | 2 Watts |
| 6 Way Power Combiner RF Input Ratings | ||
| Input Signals | In-Phase | 180° Out-of-Phase |
| Coherent | 6 X 6.67 Watts | 6 X 0.33 Watts |
| Non-Coherent | 6 X 0.66 Watts | |
PD5160 Features & Benefits
Overview
PD5160 is a 6 way, passive, 50 ohm, DC blocking RF power divider, power combiner with SMA connectors passing DC one port and blocking DC five ports. The pass port passes RF, 10 MHz and DC. The blocked ports pass 10 MHz and RF but block DC current. Maximum voltage rating at the DC blocked ports is 50 VDC. All wireless band applications in the 698 to 2700 MHz and L Band frequency range covered with best in class performance. The RoHS compliant, bidirectional PD5160 is capable of handling input power levels up to 40 watts in both power splitter and power combiner applications. See 6 way power divider input rating tables for info.
Electrical

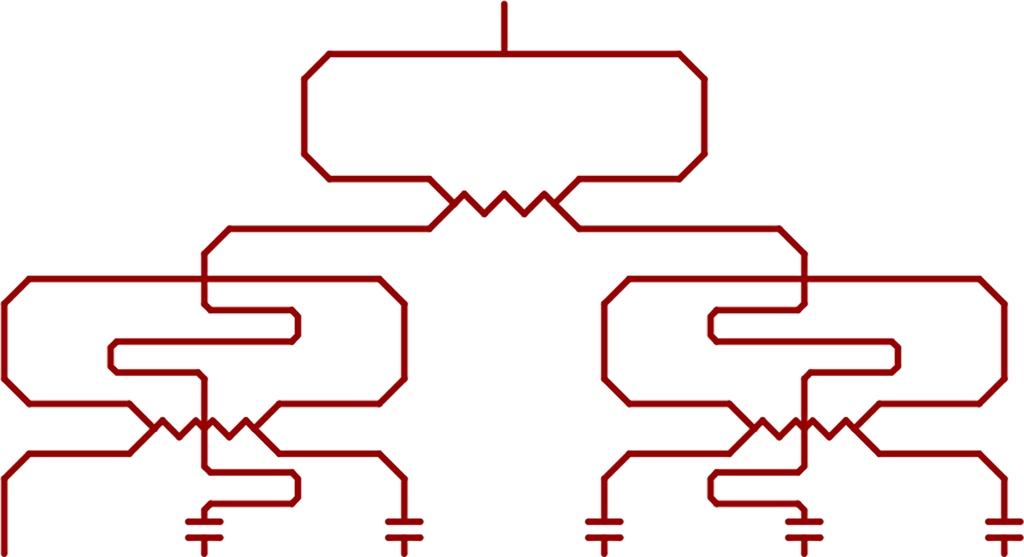

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. The Wilkinson microstrip circuit passes DC current to all ports making it ideal for use in active systems. Power splitter dividers passing DC to select ports and blocking DC to others are also available. See options (right). A true 6 way power divider, power combiner with equal power split and balance, the PD5060's electrical performance is highlighted by 1.1 dB max insertion loss (above the -7.78 dB power split), 18 dB min isolation, 1.40:1 max input VSWR and 1.25:1 max output VSWR. Equal power split and balance is displayed by 0.3 dB max amplitude balance and 5 degrees max phase balance. Narrow band RF performance over your frequency range may be even better. See 6 way Type N Female power divider test sweeps for specific details.
Mechanical
Mechanical features include precision CNC, brass, 50 ohm SMA female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by four 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.
Physical
Housing dimensions are 5.98" wide by 2.98" deep by 0.88" high (151.9 x 75.7 x 22.2 mm). The SMA female connectors extend 0.44" (11.1 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 568 grams. See 6 way RF power splitter outline drawing for more information.
Applications
The PD5160 6-way, SMA female (jack), DC Blocking power divider (splitter) combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.
PD5160 - 6 Way Power Divider Combiner Test Data
