PD2116 - RF Power Splitter, Combiner, Divider
RoHS, 16 Way, SMA Female, 698 - 2700 MHz, 50 Ohm
USD icon click to view pricing Pop-up icon
Product Overview
- Ideal for DAS (698 - 2700 MHz)
- Low Insertion Loss (1.0 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.15 : 1 avg)
- RoHS Compliant Splitter Construction
- Tri Alloy SMA Female (Jack) 50 Ohms
| Frequency Range |
Insertion Loss above 12.04 dB |
Amplitude Balance |
Phase Balance |
Isolation | Input VSWR |
Output VSWR |
|---|---|---|---|---|---|---|
| 698-2700 MHz | 1.8 dB max | 0.6 dB max | 10° max | 20 dB min | 1.50 : 1 max | 1.20 : 1 max |
| Mechanical Specifications | |
|---|---|
| Circuit Design | Wilkinson Microstrip passes DC Current thru all ports |
| Connectors | SMA Female, 50 Ohm Coaxial |
| Connector Body | Brass, Tri-Alloy Plate |
| Connector Pin | Beryllium Copper, Gold Plate |
| Connector Insulator | PTFE, Virgin Electrical Grade |
| Housing | Aluminum, Clear Chem Film |
| Operating Temp | -65°C to +85°C |
| Weight | 1700 Grams |
| 16 Way Power Divider RF Input Ratings | ||
|---|---|---|
| Into Matched Load VSWR's |
In-Phase | 180° Out-of-Phase |
| 1.2 : 1 | 40 Watts | 40 Watts |
| 2.0 : 1 | 40 Watts | 40 Watts |
| ∞ | 20 Watts | 8 Watts |
| 16 Way Power Combiner RF Input Ratings | ||
| Input Signals | In-Phase | 180° Out-of-Phase |
| Coherent | 16 X 2.5 Watts | 16 X 0.5 Watts |
| Non-Coherent | 16 X 1 Watt | |
PD2116 Features & Benefits
Overview
PD2116 is a RoHS compliant, 16 way, wideband, 50 ohm, power divider, power combiner furnished with SMA female coaxial connectors. All wireless band applications in the frequency range from 698 to 2700 MHz are covered with optimal performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 16 way power divider input rating tables for more detail.
Electrical
The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. The Wilkinson microstrip circuit passes DC current to all ports making it ideal for use in active systems. Power splitter dividers passing DC to select ports and blocking DC to others are also available. See options (right). A bi-directional 16 way power divider, power combiner with equal power split and balance, the PD2116's electrical performance is highlighted by 1.8 dB max insertion loss (above the 12 dB power split), 20 dB min isolation, 1.50:1 max input VSWR and 1.20:1 max output VSWR. Equal power split and balance is displayed by 0.6 dB max amplitude balance and 10 degrees max phase balance. Narrow band performance over your frequency range may be even better. See 16 way SMA power divider test sweeps for specific details.
Mechanical
Mechanical features include precision CNC, brass, 50 ohm SMA female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Mounting is provided by four 0.15" dia (3.81 mm) thru holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.
Physical

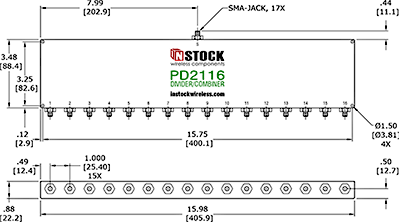

Housing dimensions are 15.98" wide by 3.48" deep by 0.88" high (405.9 x 88.4 x 22.2 mm). The SMA female (jack) connectors extend 0.44" (11.1 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 1700 grams. See 16 way power splitter outline drawing for more information.
Applications
The PD2116 16way, SMA female (jack), power divider (splitter) combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier combining & receiver dividing to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.
PD2116 - 16 Way Power Divider Combiner Test Data
