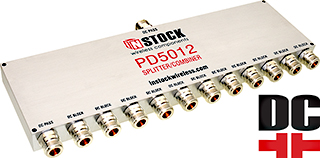

PD5012 - DC Blocking Power Splitter Combiner

12 Way, N Type Jack, 698 - 2700 MHz, 50 Ohm Coaxial

Qty 1-9: $357.48

Qty 10-24: $317.91

Qty 25+:

click to view pricing

Product Overview

Broadband Frequency (0.698 - 2.700 GHz)
Low Insertion Loss (0.6 dB avg)
High Port-to-Port Isolation (30 dB avg)
Excellent VSWR (1.15 : 1 avg)
50 VDC maximum on DC block ports
Tri Alloy Type N Female (Jack) Low PIM

Frequency Range	Insertion Loss above 10.79 dB	Amplitude Balance	Phase Balance	Isolation	Input VSWR	Output VSWR
698-2700 MHz	1.5 dB max	0.5 dB max	8° max	18 dB min	1.45 : 1 max	1.25 : 1 max

Mechanical Specifications
Circuit Design	Passive Wilkinson; DC pass 1 port, DC block 11 ports
Connectors	N Female, 50 Ohm Coaxial
Connector Body	Brass, Tri-Alloy Plate
Connector Pin	Phosphor Bronze, Gold Plate
Connector Insulator	PTFE, Virgin Electrical Grade
Housing	Aluminum, Clear Chem Film
Operating Temp	-65°C to +85°C
Weight	1463 Grams

12 Way Power Divider RF Input Ratings
Into Matched Load VSWR's	In-Phase	180° Out-of-Phase
1.2 : 1	40 Watts	40 Watts
2.0 : 1	40 Watts	40 Watts
∞	20 Watts	4 Watts
12 Way Power Combiner RF Input Ratings
Input Signals	In-Phase	180° Out-of-Phase
Coherent	12 X 3.33 Watts	12 X 0.33 Watts
Non-Coherent	12 X 0.66 Watts

PD5012 Features & Benefits

Overview

PD5012 is a DC blocking, twelve way, RF broadband, 50 ohm, power divider, power combiner furnished with N type coaxial connectors. The passive Wilkinson design passes RF, 10 MHz and DC current through one port, typically for powering an active antenna, with the other ports blocking DC. Max voltage rating at the DC blocked ports is 50 VDC. All wireless band applications in the frequency range from 698 to 2700 MHz are covered with best in class RF performance. The RoHS compliant PD5012 is a bidirectional device capable of 40 W max microwave input power level in both power splitter and combiner apps. See 12 way power divider input rating tables for additional power handling info.

Electrical

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 1.5 dB max insertion loss (above the -10.79 dB power split), 18 dB min isolation, 1.45:1 max input VSWR and 1.25:1 max output port VSWR. Equal power split and symmetry is displayed by 0.5 dB amplitude balance and 8 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 12 way power divider test sweeps for details.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm N type female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by four 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

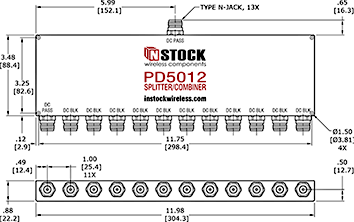

Housing dimensions are 11.98" wide by 3.48" deep by 0.88" high (304.3 x 88.4 x 22.2 mm). The N type female (jack) connectors extend 0.65" (16.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 1463 grams. See 12 way DC block splitter outline drawing for more information.

Applications

The PD5012 12-way, type N jack, DC blocking, power splitter combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in networks encompassing 700 MHz Public Safety Band, 800 MHz cellular, GSM 850, 900, 1800 & 1900, PCS 1900, 1 GHz to 2 GHz L-Band, GPS, W-CDMA-3G, UMTS, TETRA, RFID, IEEE802.11b/g, 2.45 GHz ISM, Wi Fi and 2.3 GHz & 2.5 GHz WiMAX.
