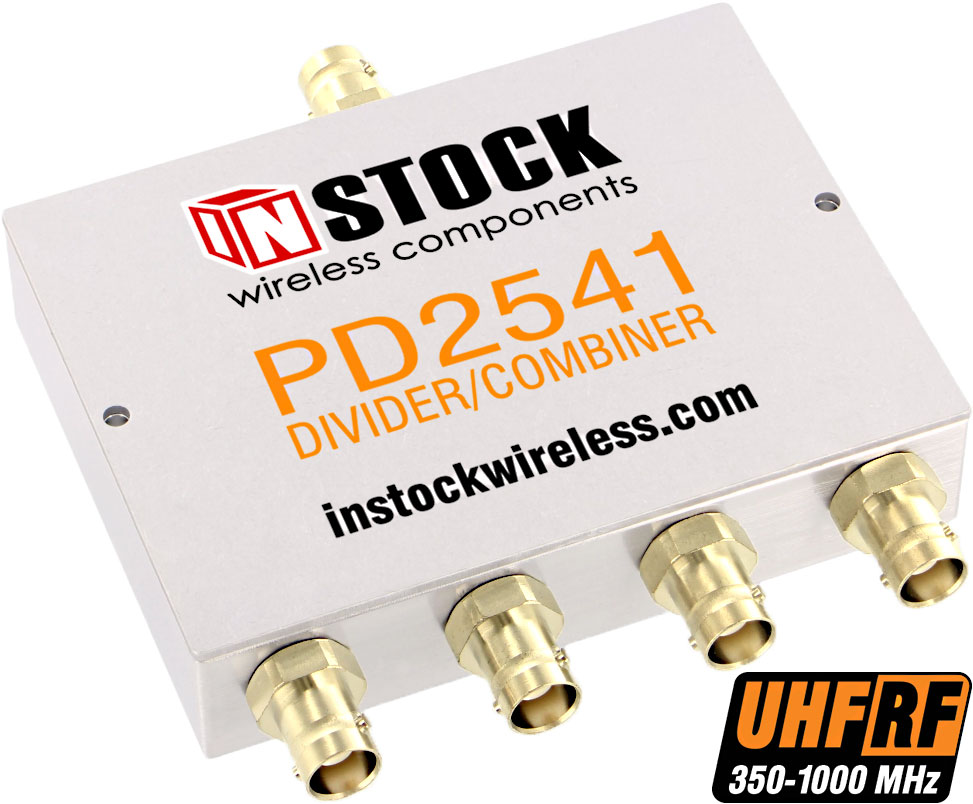

PD2541 - UHF/RFID Power Divider Combiner
4-Way, BNC Female, 350-1000 MHz, 30 Watts
USD icon click to view pricing Pop-up icon
Product Overview
- Wideband Frequency (350 - 1000 MHz)
- Low Insertion Loss (0.4 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- RoHS Compliant Splitter Construction
- Tri Alloy BNC Female (Jack) Low PIM
| Frequency Range |
Insertion Loss above 6.02 dB |
Amplitude Balance |
Phase Balance |
Isolation | Input VSWR |
Output VSWR |
|---|---|---|---|---|---|---|
| 350-1000 MHz | 1.0 dB max | 0.3 dB max | 5° max | 22 dB min | 1.30 : 1 max | 1.15 : 1 max |
| Mechanical Specifications | |
|---|---|
| Circuit Design | Wilkinson Microstrip passes DC Current thru all ports |
| Connectors | BNC Female, 50 Ohm Coaxial |
| Connector Body | Brass, Tri-Alloy Plate |
| Connector Pin | Beryllium Copper, Gold Plate |
| Connector Insulator | PTFE, Virgin Electrical Grade |
| Housing | Aluminum, Clear Chem Film |
| Operating Temp | -65°C to +85°C |
| Weight | 383 Grams |
| 4 Way Power Divider RF Input Ratings | ||
|---|---|---|
| Into Matched Load VSWR's |
In-Phase | 180° Out-of-Phase |
| 1.2 : 1 | 30 Watts | 30 Watts |
| 2.0 : 1 | 30 Watts | 15 Watts |
| ∞ | 15 Watts | 1.5 Watts |
| 4 Way Power Combiner RF Input Ratings | ||
| Input Signals | In-Phase | 180° Out-of-Phase |
| Coherent | 4 X 7.5 Watts | 4 X 0.375 Watts |
| Non-Coherent | 4 X 0.75 Watts | |
PD2541 Features & Benefits
Overview
PD2541 is a RoHS compliant, 4 way, wideband, 50 ohm, RF power divider, power combiner furnished with BNC jack female coaxial connectors. All wireless band frequencies in the range from 350 to 1000 MHz are covered with optimal RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 4 way power divider input rating tables for additional details.
Electrical
The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 1.0 dB max insertion loss (above the 6.02 dB power split), 22 dB min isolation, 1.30:1 max input VSWR and 1.15:1 max output port VSWR. Equal power split and symmetry is displayed by 0.3 dB amplitude balance and 5 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 4 way power divider test sweeps for details.
Mechanical
Mechanical features include precision CNC, brass, 50 ohm BNC female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.
Physical
Housing dimensions are 3.98" wide by 2.98" deep by 0.88" high (101.1 x 75.7 x 22.2 mm). The BNC female (jack) connectors extend 0.61" (15.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 383 grams. See 4 way BNC splitter outline drawing for more information.
Applications
The PD2541 4-way, BNC-jack, 350-1000 MHz power splitter combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in UHF networks encompassing Land Mobile Radio System (LMRS), Terrestrial Trunked Radio (TETRA), and Radio Frequency Identification (RFID).
PD2541 - 4 Way Power Divider Combiner Test Data
