PD9024 - High Power Combiner Divider, 100 Watts
2 Way, N Type, IP67 Outdoor, 698 - 2700 MHz
USD icon click to view pricing Pop-up icon
Product Overview
- Wideband Frequency (698 - 2700 MHz)
- Low Insertion Loss (0.2 dB avg)
- High Port-to-Port Isolation (30 dB avg)
- Excellent VSWR (1.10 : 1 avg)
- RoHS Compliant Splitter Construction
- Tri Alloy Type N Female (Jack) Low PIM
| Frequency Range |
Insertion Loss above |
Amplitude Balance |
Phase Balance |
Isolation | Input VSWR |
Output VSWR |
|---|---|---|---|---|---|---|
| 698-800 MHz | 0.35 dB max | 0.15 dB max | 2° max | 17 dB min | 1.35 : 1 max | 1.10 : 1 max |
| 800-1000 MHz | 0.35 dB max | 0.15 dB max | 2° max | 20 dB min | 1.25 : 1 max | 1.10 : 1 max |
| 1000-1700 MHz | 0.55 dB max | 0.10 dB max | 2° max | 20 dB min | 1.40 : 1 max | 1.20 : 1 max |
| 1700-2500 MHz | 0.95 dB max | 0.10 dB max | 2° max | 24 dB min | 1.35 : 1 max | 1.30 : 1 max |
| 2500-2700 MHz | 1.15 dB max | 0.10 dB max | 2° max | 20 dB min | 1.50 : 1 max | 1.30 : 1 max |
| Mechanical Specifications | |
|---|---|
| Circuit Design | Wilkinson Microstrip passes DC Current thru all ports |
| Connectors | N Female, 50 Ohm Coaxial |
| Connector Body | Brass, Tri-Alloy Plate |
| Connector Pin | Phosphor Bronze, Gold Plate |
| Connector Insulator | PTFE, Virgin Electrical Grade |
| Housing | Aluminum, Clear Chem Film |
| Operating Temp | -65°C to +85°C |
| Weight | 317 Grams |
| 2 Way Power Divider RF Input Ratings | ||
|---|---|---|
| Into Matched Load VSWR's |
In-Phase | 180° Out-of-Phase |
| 1.2 : 1 | 100 Watts | 100 Watts |
| 2.0 : 1 | 100 Watts | 100 Watts |
| ∞ | 100 Watts | 20 Watt |
| 2 Way Power Combiner RF Input Ratings | ||
| Input Signals | In-Phase | 180° Out-of-Phase |
| Coherent | 2 X 50 Watts | 2 X 10 Watts |
| Non-Coherent | 2 X 20 Watts | |
PD9024 Features & Benefits
Overview
PD9024 is an outdoor, waterproof and weather resistant, IP67 rated, 2 way, 50 ohm, broadband RF high-power power combiner furnished with type N female coaxial connectors. All wireless band frequencies in the range from 698 to 2700 MHz are covered with best in class RF performance. Max microwave input power levels to 100 watts can be handled in power divider splitter applications. For non-coherent signals, up to 20 watts can be handled through each port. With coherent signals, up to 50 watts can be handled through each port. See 2 way high power combiner input rating tables for more info.
Electrical
The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. The Wilkinson microstrip circuit passes DC current to all ports making it ideal for use in active systems. Electrical performance is highlighted by 0.2 dB typical insertion loss (above the 3.01 dB power split), high port-to-port isolation (30 dB avg), and excellent VSWR (typically 1.10 : 1). Equal power split and balance is displayed by 0.1 dB avg amplitude balance and 2 degrees max phase balance. Narrow band RF performance over your frequency range may be even better. See 2 way power combiner test sweeps or high power combiner spec tables for specific details.
Mechanical
Mechanical features include precision CNC, brass, 50 ohm N type female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear passivated finish. Provision for secure mounting is enabled by four .203" diameter (5.16 mm) through holes. RoHS construction includes no-lead solder and finish free of hexavalent chromium. Water and weather resistance for uninterrupted safe outdoor use is achieved through silicone o-rings sealing all components.
Physical

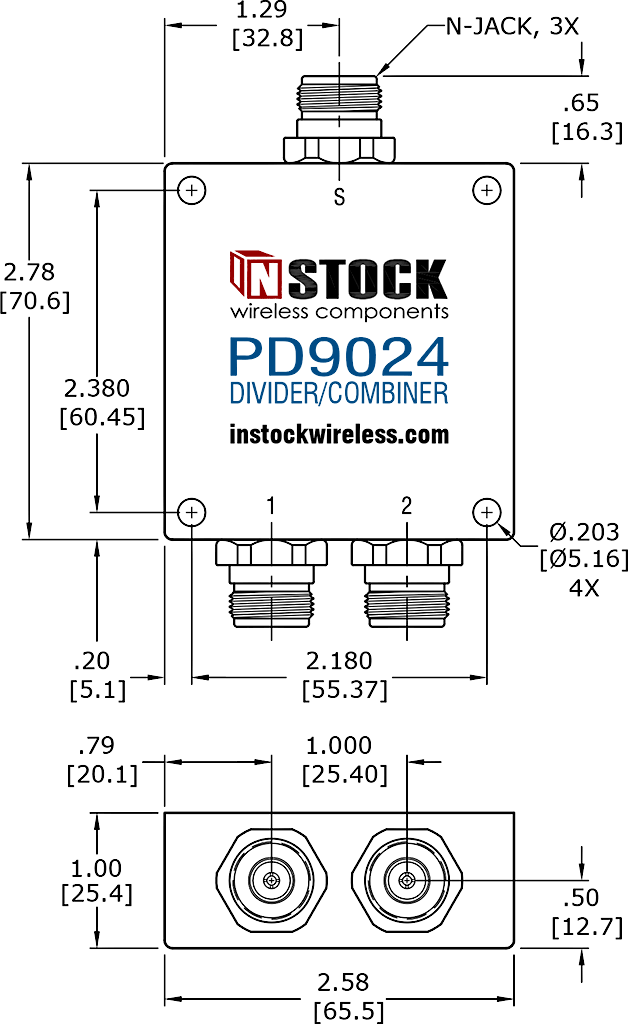

Exterior housing dimensions are 2.58" wide by 2.78" deep by 1.00" high (65.5 x 70.6 x 25.4 mm). N-type female (jack) connectors extend 0.65" (16.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 317 grams. Rated for continuous water and weather resistant exterior use. May also be used indoors. See 2 way power combiner outline drawing for more details.
PD9024 - 2 Way Power Divider Combiner Test Data
