PD5916 - DC Blocking L-Band Splitter Combiner

16-Way, DC Block 15 Ports, TNC, 698-2700 MHz

Qty 1-9: $483.93

Qty 10-24: $430.36

Qty 25+:

click to view pricing

Product Overview

Wideband Frequency (698 - 2700 MHz)
Low Insertion Loss (1.0 dB avg)
High Port-to-Port Isolation (30 dB avg)
Excellent VSWR (1.15 : 1 avg)
50 VDC maximum on DC block port
Tri Alloy TNC Female (Jack) 50 Ohm

Frequency Range	Insertion Loss above 12.04 dB	Amplitude Balance	Phase Balance	Isolation	Input VSWR	Output VSWR
698-2700 MHz	1.8 dB max	0.6 dB max	8° max	18 dB min	1.50 : 1 max	1.20 : 1 max

Mechanical Specifications
Circuit Design	Passive Wilkinson; DC pass 1 port, DC block 15 port
Connectors	TNC Female, 50 Ohm Coaxial
Connector Body	Brass, Tri-Alloy Plate
Connector Pin	Beryllium Copper, Gold Plate
Connector Insulator	PTFE, Virgin Electrical Grade
Housing	Aluminum, Clear Chem Film
Operating Temp	-65°C to +85°C
Weight	1690 Grams

16 Way Power Divider RF Input Ratings
Into Matched Load VSWR's	In-Phase	180° Out-of-Phase
1.2 : 1	40 Watts	40 Watts
2.0 : 1	40 Watts	40 Watts
∞	20 Watts	8 Watts
16 Way Power Combiner RF Input Ratings
Input Signals	In-Phase	180° Out-of-Phase
Coherent	16 X 2.5 Watts	16 X 0.5 Watts
Non-Coherent	16 X 1 Watt

PD5916 Features & Benefits

Overview

PD5916 is a RoHS compliant, 16 way, wideband, 50 ohm, RF power divider, power combiner furnished with TNC jack female coaxial connectors. The passive Wilkinson design passes RF, 10 MHz and DC current through one port, typically for powering an active antenna, with the other ports blocking DC. Max voltage rating at the DC blocked ports is 50 VDC. All wireless band applications in the frequency range from 698 to 2700 MHz are covered with best in class RF performance. Max microwave input power levels up to 40 watts can be handled in both power splitter and power combiner applications. See 16 way power divider input rating tables for additional details.

Electrical

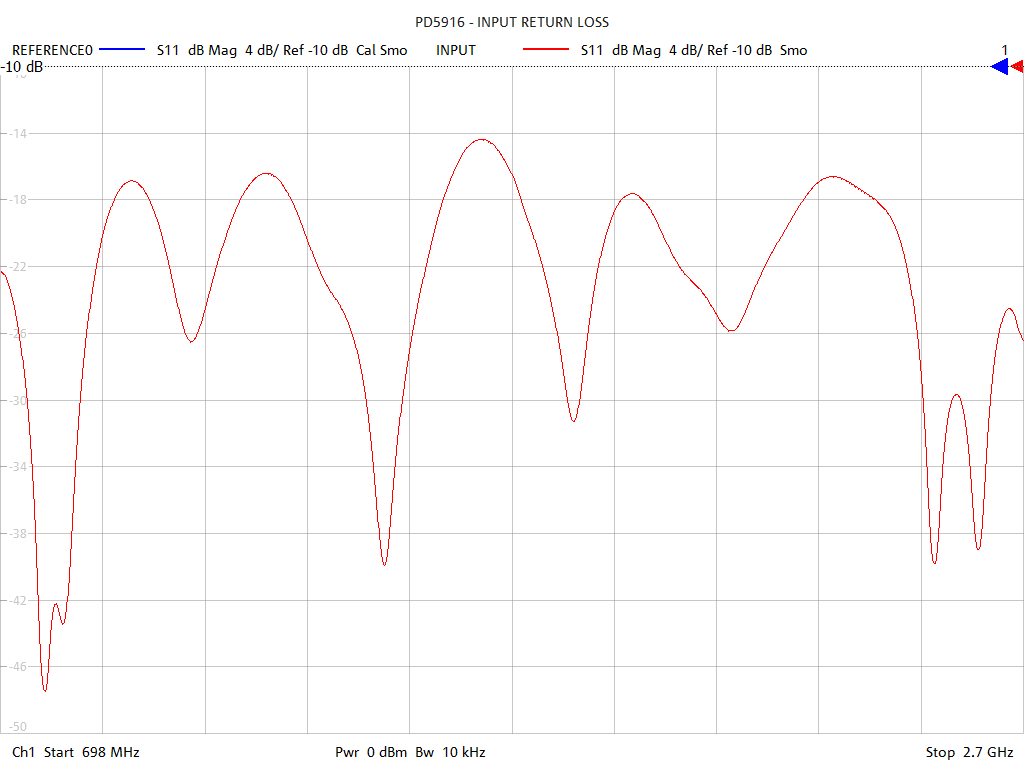

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 1.8 dB max insertion loss (above the 12.04 dB power split), 20 dB min isolation, 1.50:1 max input VSWR and 1.20:1 max output port VSWR. Equal power split and symmetry is displayed by 0.6 dB amplitude balance and 8 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 16 way power divider test sweeps for details.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm TNC female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated beryllium copper for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating.

Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by four 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

Housing dimensions are 15.98" wide by 3.48" deep by 0.88" high (405.9 x 88.4 x 22.2 mm). The TNC female (jack) connectors extend 0.61" (15.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 1690 grams. See 16 way TNC splitter outline drawing for more information.

Applications

The PD5916 12-way, TNC-jack, 698-2700 MHz power splitter combiner is ideal for a wide range of wireless radio frequency microwave applications on both transmit and receive sides, ranging from amplifier sharing & receiver combining to antenna splitting, and is deployed world wide in UHF networks encompassing Land Mobile Radio System (LMRS), Terrestrial Trunked Radio (TETRA), and Radio Frequency Identification (RFID).
