PD504A - DC & 10 MHz Pass L-Band Splitter

4 Way, N Type, 698 - 2700 MHz, Pass/Block DC + 10 MHz

Previous Image
Next Image
Qty 1-9: $131.77
Qty 10-24: $117.18
Qty 25+:

USD icon click to view pricing Pop-up icon

Product Overview

  • Passes 10 MHz BUC reference signal with exceptionally low 0.3 dB max insertion loss on pass port
  • Blocks 10 MHz by 50 dB min on block port
  • Passes DC one (1) port for powering LNB/active antenna at 4A/50 VDC max
  • Equally splits full L-Band spectrum with exceptional specs
Frequency
Range
Insertion Loss
Amplitude
Balance
Phase
Balance
Isolation Input
VSWR
Output
VSWR
698-2700 MHz 0.8 dB* 0.3 dB max 8° max 22 dB min 1.25 : 1 max 1.25 : 1 max
10 MHz Pass 0.4 dB max** N/A N/A 50 dB min 1.25 : 1 max 1.20 : 1 max
10 MHz Block 50 dB min N/A N/A 50 dB min 1.25 : 1 max 100 : 1 min
*Above 6.02 dB power split **Total insertion loss
Mechanical Specifications
Circuit Design Wilkinson; DC+10 MHz pass 1 port, DC+10 MHz block 4 port
Connectors N-type Female (Jack) 50 Ohm
Connector Body Brass, Tri-Alloy Plate
Connector Pin Phosphor Bronze, Gold Plate
Connector Insulator PTFE, Virgin Electrical Grade
Housing Aluminum, Clear Chem Film
Operating Temp -65°C to +85°C
Weight 452 Grams
4 Way Power Divider RF Input Ratings
Into Matched
Load VSWR's
In-Phase 180° Out-of-Phase
1.2 : 1 40 Watts 40 Watts
2.0 : 1 40 Watts 40 Watts
20 Watts 4 Watts
4 Way Power Combiner RF Input Ratings
Input Signals In-Phase 180° Out-of-Phase
Coherent 4 X 10 Watts 4 X 1 Watts
Non-Coherent 4 X 2 Watts

PD504A Features & Benefits

Overview

PD504A is a 4-way, N-type, L-Band power divider capable of bi-directional splitting and combining in transmit and receive modes. This passive Wilkinson microstrip unit equally splits the full L-band radio spectrum between two receivers or modems while passing DC and 10 MHz through one port and blocking DC and 10 MHz from the other port.


This model is ideal for splitting L-band satellite signals between two receivers. The DC+10 MHz pass port allows one receiver to power an LNB and provides a path for the 10 MHz BUC reference signal necessary to maintain correct transmission uplink frequency. The DC+10 MHz block port prevents redundant feed from the other receiver.


A unique feature of this splitter is low insertion loss of the 10 MHz BUC reference signal thru the pass port at less than 0.3 dB compared to conventional models passing 10 MHz with approximately 3.6 dB insertion loss. This remarkably low insertion loss is achieved by filtering the 10 MHz signal from the block port, resulting in more than 50 dB rejection. This conserves virtually all the 10 MHz signal for transmission through the pass port only.


The DC pass port is rated 50VDC and 4A. All L-band applications in the frequency range from 698 to 2700 MHz are covered with best in class performance.

Electrical

The heart of the unit is a precision designed and etched Wilkinson type microstrip circuit on a low loss, high frequency, dielectric substrate. Electrical performance is highlighted by 0.4 dB max insertion loss (above the 6.02 dB power split), 22 dB min isolation, 1.20:1 max input VSWR and 1.20:1 max output port VSWR. Equal power split and symmetry is displayed by 0.2 dB amplitude balance and 3 degrees phase balance. Narrow band RF performance over your frequency range may be even better. See 4 way power divider test sweeps for details.

Mechanical

Mechanical features include precision CNC, brass, 50 ohm N type female coaxial connectors with tri alloy plating to insure tarnish resistance and low PIM operation. Connector pins are gold plated phosphor bronze for reliability and low contact resistance. Virgin electrical grade PTFE support insulators captivate the contact pins enabling trouble free coaxial connector mating. Long term operation and superior shielding is assured by the rugged CNC machined aluminum housing with clear chemical film finish. Secure mounting is provided by two 0.125" diameter (3.18 mm) through holes. RoHS construction includes no-lead solder and a finish free of hexavalent chromium.

Physical

Housing dimensions are 1.98" wide by 1.98" deep by 0.88" high (50.3 x 50.3 x 22.2 mm). The N type female (jack) connectors extend 0.65" (16.5 mm) from the housing. Operating temperature range is from -65°C to +85°C. Weight is 452 grams. See 4 way L-band splitter outline drawing for more information.

Applications

Ideal for splitting L-band satellite signals between two receivers. The DC+10 MHz pass port allows one receiver to power an LNB and provides a path for the 10 MHz BUC reference signal necessary to maintain correct transmission uplink frequency. The DC+10 MHz block port prevents redundant feed from the other receiver.

PD504A - 4 Way Power Divider Combiner Test Data

Close Test Data

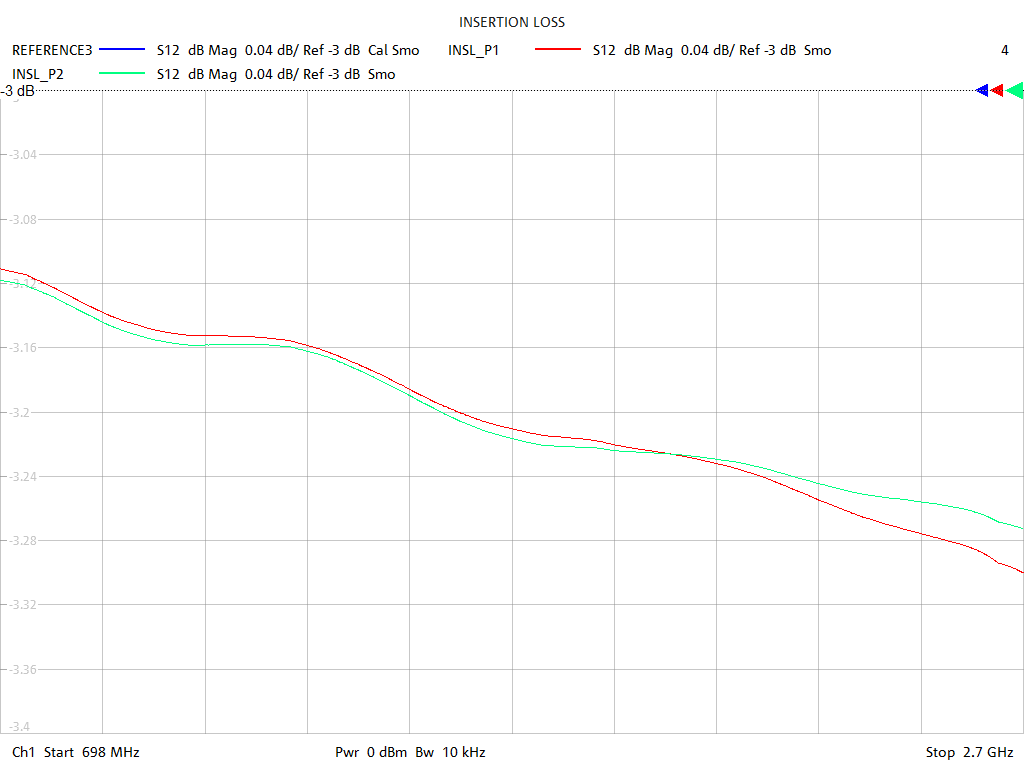

Insertion Loss Test Sweep for PD504A
